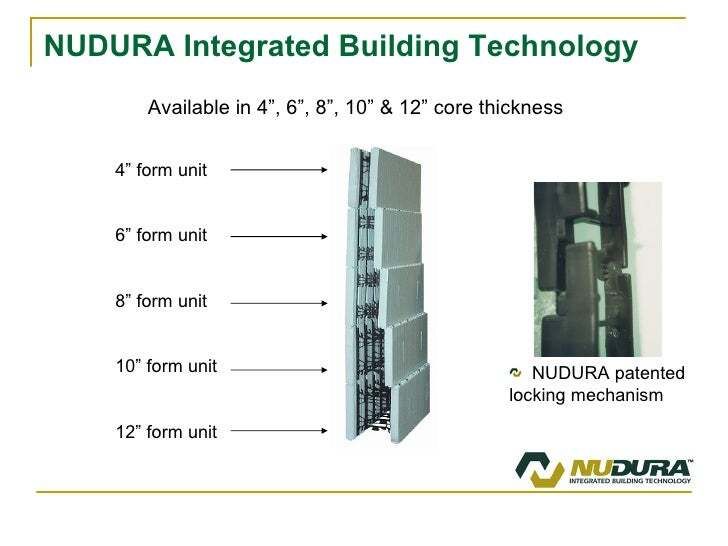

Choosing the Right ICF Core Size: A Comprehensive Guide for Builders and Homeowners

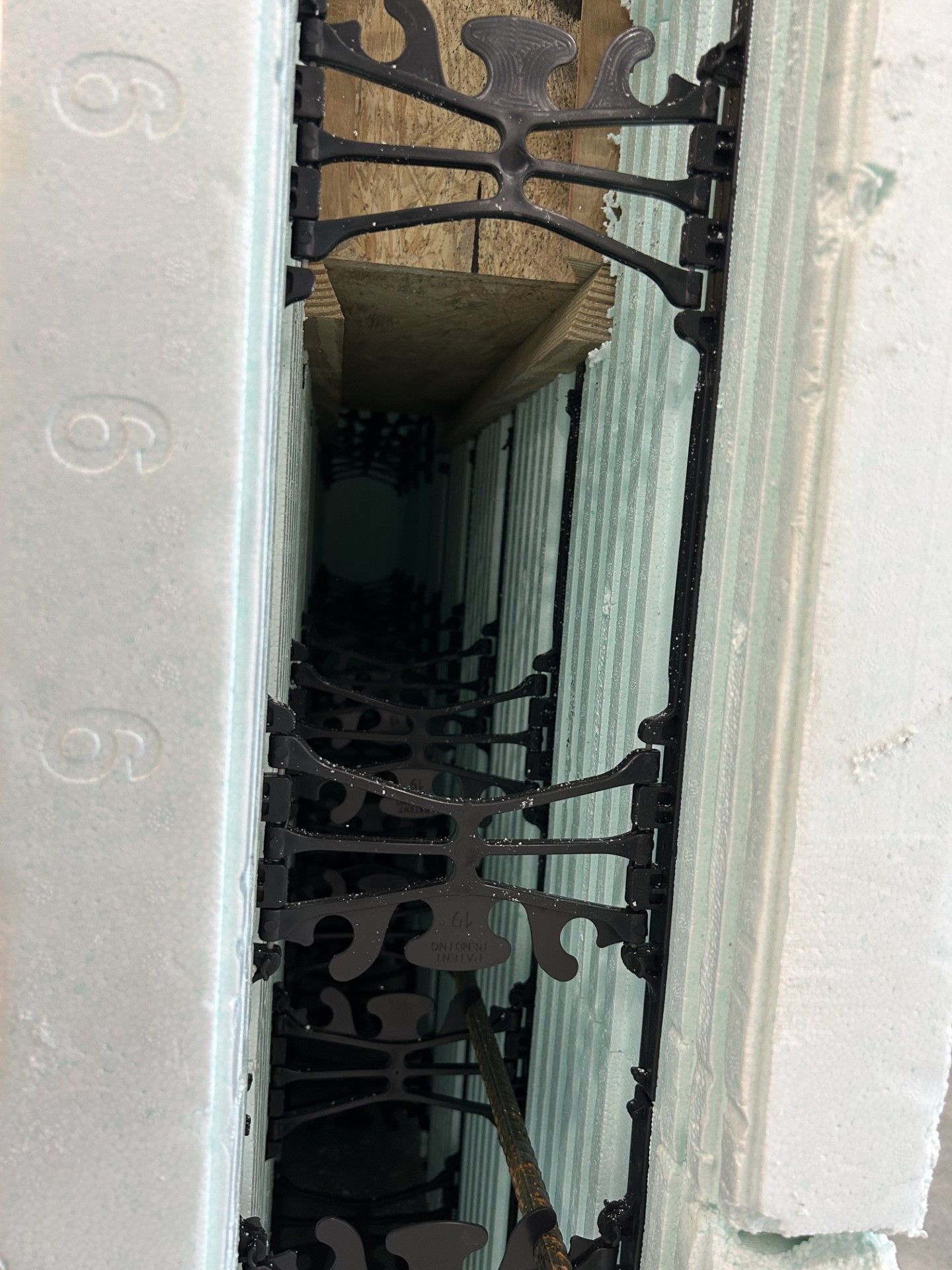

The Standard 6-Inch Core

 The 6-inch core size is the standard and most commonly used in ICF construction. The Standard 6-inch core is used for below-grade walls in residential. Up to 9 stories above grade, the benefit points we discuss are based on the 6-inch core block (wind resistance, fire rate, storm resilience, etc). It provides a solid balance between structural integrity and insulation. With a 6-inch core, your walls will be filled with 6 inches of concrete, offering excellent load-bearing capacity and thermal performance. This size is ideal for most residential projects, providing a strong and energy-efficient solution that meets building codes and standards.

The 4-Inch Core

The 4-inch core size is a compact option that allows for a thinner layer of concrete within the ICF blocks. This size may be chosen for specific design or budget considerations. While it offers less structural support compared to thicker cores, it can still provide adequate insulation and soundproofing for certain applications. However, it's important to note that this core size cannot be used below grade, is limited to one story, and should not exceed a height of 10 feet. Carefully assess the needs of your project to determine if this core size is suitable.

For those seeking additional strength and insulation, the 8-inch core size is an excellent option. This size allows for 8 inches of concrete filling, resulting in a sturdier structure capable of handling heavier loads and extreme weather conditions. The increased concrete mass also enhances the thermal mass effect, helping to maintain a stable indoor temperature. An 8-inch core is particularly recommended for larger homes or buildings in areas with challenging climates.

The 10-Inch Core

When extreme strength and durability are required, the 10-inch core size is the go-to choice. With 10 inches of concrete, this option provides exceptional structural integrity, making it suitable for both residential and commercial projects with higher load demands. The thicker core also offers superior sound insulation, creating a quieter and more comfortable indoor environment. Choosing a 10-inch core is a great investment for long-term durability and energy efficiency.

The 12-Inch Core

The 12-inch core size represents the pinnacle of strength and insulation in ICF construction. With a full 12 inches of concrete filling, this core size delivers unparalleled structural support, making it ideal for large-scale buildings and projects requiring the highest levels of stability and resilience. The substantial concrete mass also provides excellent thermal insulation and soundproofing, ensuring a comfortable and energy-efficient living space. For those who prioritize longevity and top-tier performance, the 12-inch core is the ultimate choice.

The 12+ Inch Core

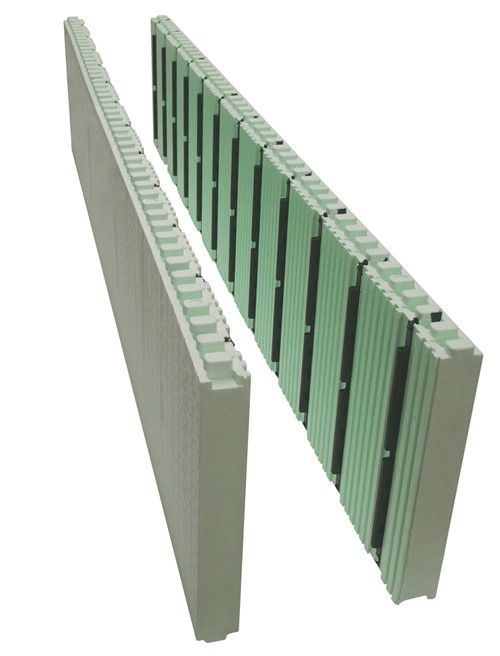

If wanting an additional core size form that option is also available to choose from. Forms above 12 inches come disassembled, requiring the web to be inserted between the 2 layers of foam on site. Typically, additional core-size forms are used for an extra layer of concrete for in-ground bunkers and safe rooms. We have completed a 24-inch core saferoom and have been informed of a 32-inch core being done.

Conclusion: Why Core Size Matters

Selecting the appropriate core size for your ICF home is a crucial decision that impacts the structural integrity, energy efficiency, and comfort of your living space. While all core sizes offer significant benefits, choosing a thicker core can provide enhanced strength, thermal mass, insulation, and long-term value. Whether you opt for the standard 6-inch core or the 12-inch core, we value your decision because we believe that your home should work as hard for you as you do for it.
